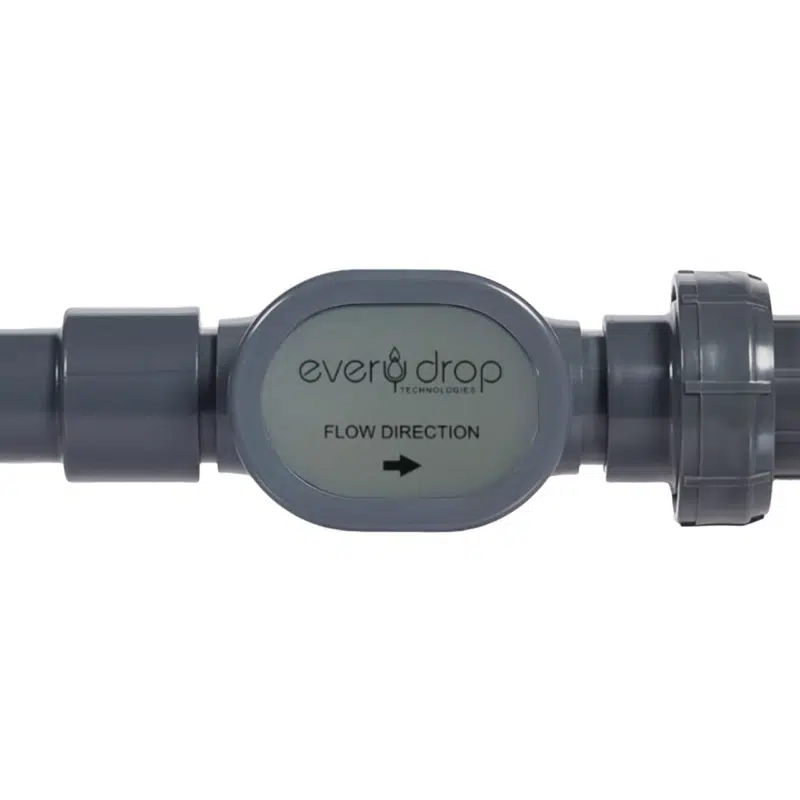

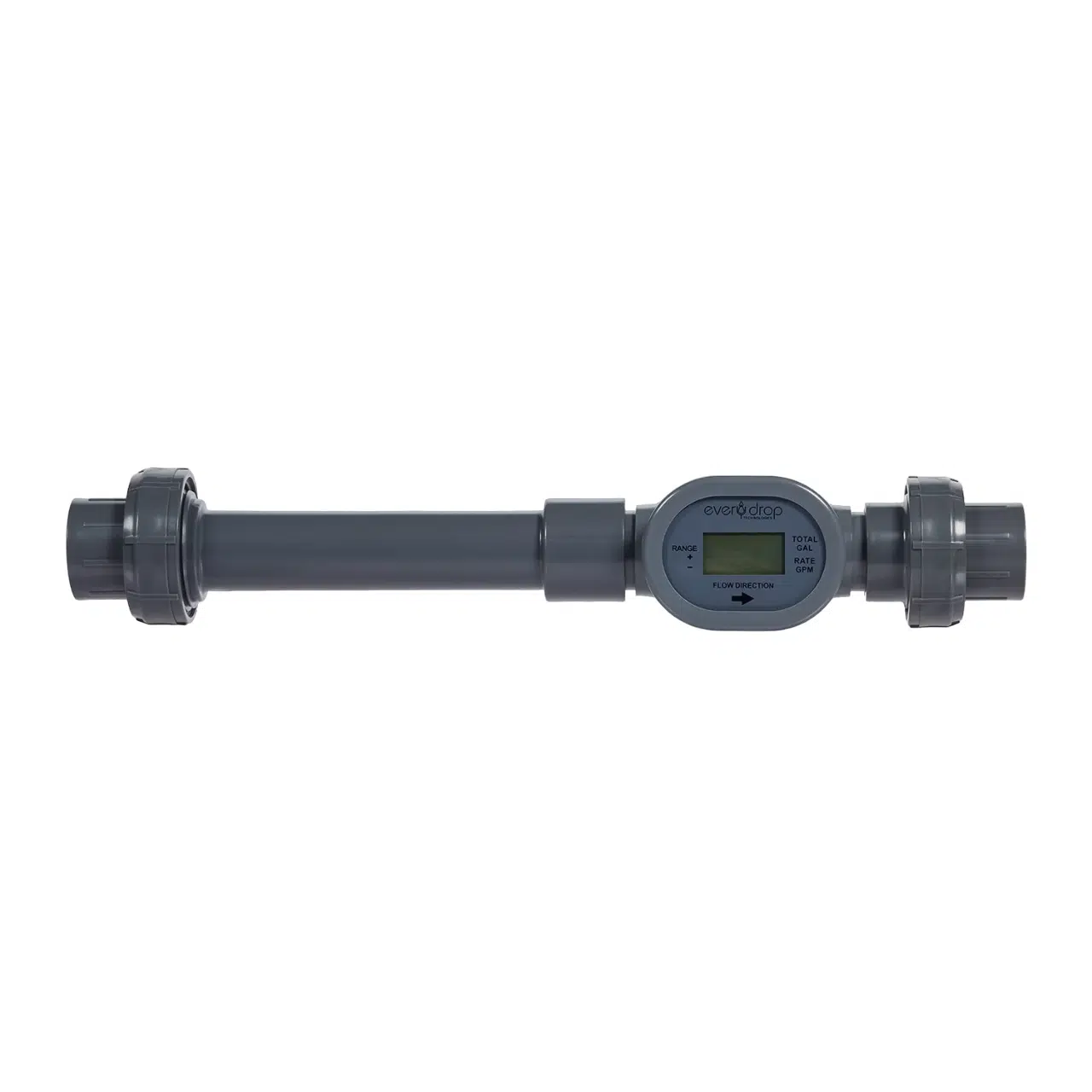

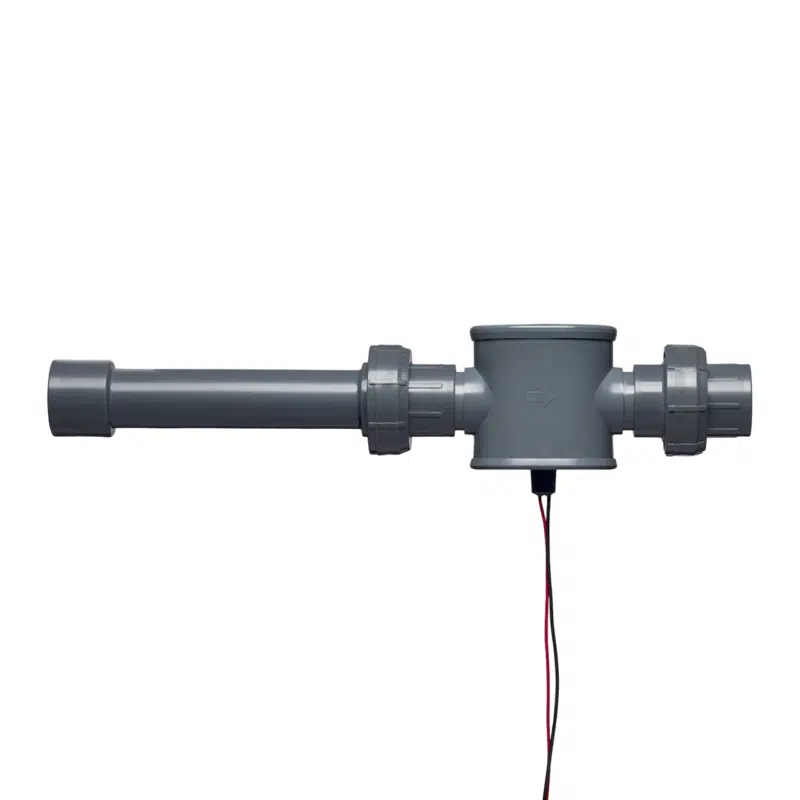

1″ Wired Irrigation Flow Meter Pulse Sensor, 1004-EX, Compatible with Rachio Gen 3, Rachio Pro Series, and Spruce Smart Controllers
$209.00
Model 1004-EX is a 1” vortex irrigation flow meter that provides highly accurate, real-time flow monitoring. It features a display and has a 2 wire interface with shared power and pulse signal. (Compatible with Rachio Generation 3 and Pro Series Smart Wi-Fi Controllers) This model comes with upstream straight length and unions for easy installation.
In Stock
The 1″ Vortex water flowmeter is +/-2% reading accurate over the range of 1 GPM to 20 GPM. This meter will read flow from 0.5 GPM to 30 GPM. With no rotating parts such as paddle meters or turbine meters, reliability is dramatically increased. It will not change calibration over time due to bearing wear. In irrigation systems, the meter does not have to be removed for system blow out as many commonly used irrigation meters must be. It also has a display with flow and total for easy reading and troubleshooting. With the 2 wire pulse output, it can be connected to the wired input of many widely used irrigation timers. When connected to the Plaid Systems WiFi Sprinkler Controller, it can monitor and report incorrect flow rates so that you can correct problems before they become a disaster.
This version of the meter is meant to be connected to an irrigation timer flow input (such as Spruce Irrigation or Rachio).
- Smart Controller Compatible: Manage your water usage and monitor for leaks right from your smartphone when paired with a smart controller
- Wide Flow Range: 0.5 GPM to 30 GPM
- High Reliability: No rotating parts or bearings wear out
- Easy Install: Every flow meter comes with built-in unions that allow for easy installation
- Adaptable: Can be used in both 3/4″ and 1″ applications
Rachio Pro Support Email and Phone:
| Weight | 1.4 lbs |
|---|---|
| Dimensions | 16.25 × 4.5 × 4.5 in |
| Brand |
1444 reviews for 1″ Wired Irrigation Flow Meter Pulse Sensor, 1004-EX, Compatible with Rachio Gen 3, Rachio Pro Series, and Spruce Smart Controllers
You must be logged in to post a review.
You may also like…
Related products

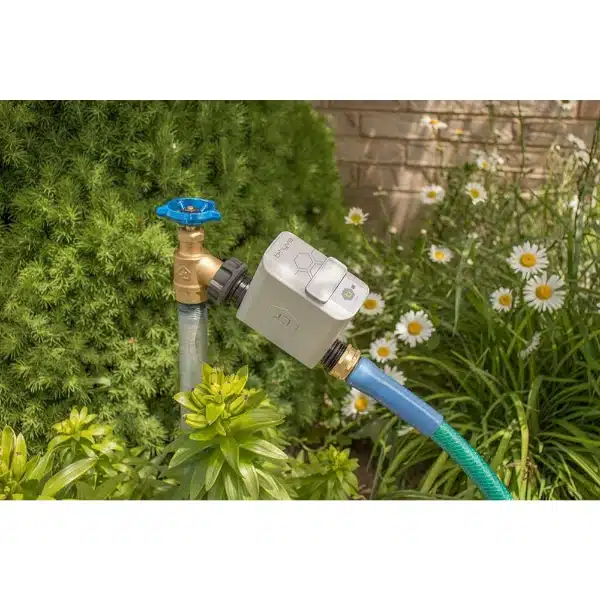

- BLUETOOTH CONTROL: Use your mobile device’s Bluetooth functionality to control and program your B-hyve (Android or iOS) from within its Bluetooth signal range of up to 150 feet. You can program your timer through the app or with your web browser
